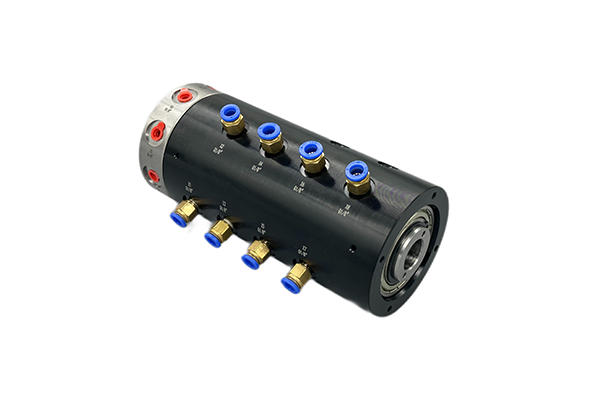

MAP型旋轉接頭
- 質量穩定
- 實行全過程質量監控，細致入微，全方位檢測！
- 價格合理
- 高效內部成本控制，減少了開支，讓利于客戶！
- 交貨便捷
- 先進生產流水線，充足的備貨，縮短了交貨期！
- 銷售熱線：0519-86180788
- 圖文傳真：0519-86187881
- 技術支持：13962697289
- 產品介紹
- 型號釋義
- 應用示例
技術參數表
口徑
M5-G1/2"
轉速
200RPM
壓力
1.1Mpa
溫度
-30～+80℃
介質
壓縮空氣
技術特點：
? 兩個寬大精密軸承支撐，運轉平穩，軸承終身無需維護；
? 進口專用密封件，保證長壽命運轉；
? 經特殊處理芯軸保證了足夠耐磨性；
? 殼體可由鋁合金制作；
? 可根據客戶工況定制專用產品；

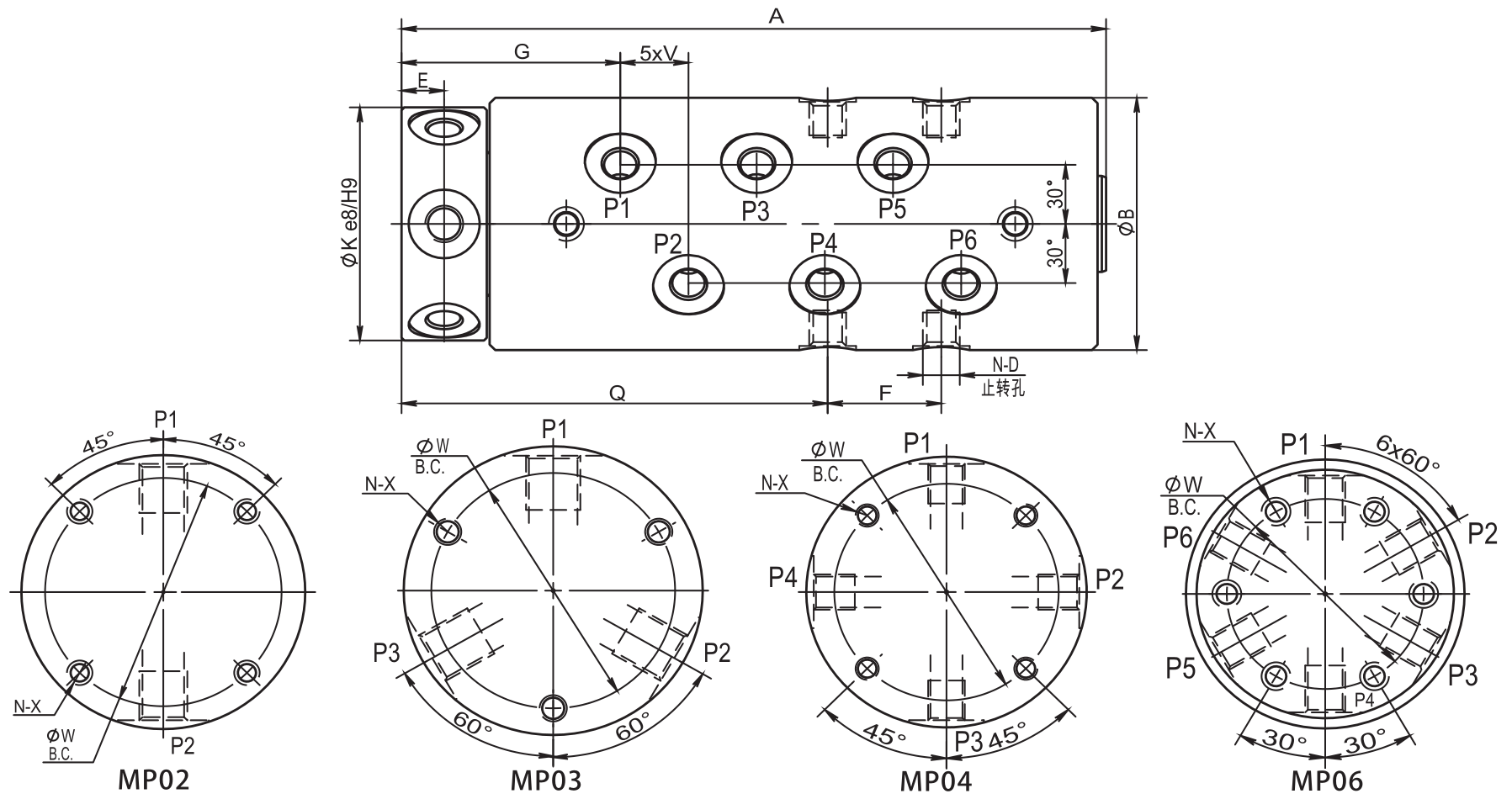

安裝尺寸表
| 類型 | DN | 訂貨型號 | K | P | A | B | Q | D | F | E | G | V | N-X | W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MAP02 | 5A | MAP02005 | 35 | 2-M5 | 59.5 | 35 | 45.5 | 2-M5 | / | 8 | 29 | 11 | 4-M4 | 26 |
| 6A | MAP02006 | 50 | 2-G1/8" | 87 | 50 | 75 | 2-M6 | / | 12 | 43 | 18 | 4-M5 | 35 | |
| 8A | MAP02008 | 60 | 2-G1/4" | 105 | 60 | 92 | 2-M8 | / | 15 | 53 | 22 | 4-M6 | 45 | |
| 10A | MAP02010 | 70 | 2-G3/8" | 120 | 70 | 98 | 2-M8 | / | 19 | 62 | 24 | 4-M6 | 55 | |
| 15A | MAP02015 | 85 | 2-G1/2" | 150 | 85 | 123 | 2-M10 | / | 25 | 78 | 30 | 4-M8 | 65 | |
| MAP03 | 5A | MAP03005 | 50 | 3-M5 | 82.5 | 50 | 70.5 | 2-M6 | / | 8 | 33.5 | 13 | 3-M5 | 35 |
| 6A | MAP03006 | 60 | 3-G1/8" | 109 | 60 | 80 | 2-M6 | / | 12 | 45 | 18 | 3-M5 | 45 | |
| 8A | MAP03008 | 68 | 3-G1/4" | 131 | 68 | 102 | 2-M8 | / | 15 | 54 | 22 | 3-M6 | 50 | |
| 10A | MAP03010 | 75 | 3-G3/8" | 150 | 75 | 123 | 2-M8 | / | 19 | 65 | 24 | 3-M6 | 60 | |
| 15A | MAP03015 | 85 | 3-G1/2" | 181 | 85 | 153 | 2-M10 | / | 25 | 78 | 30 | 3-M8 | 65 | |
| MPA04 | 5A | MAP04005 | 50 | 4-M5 | 95.5 | 50 | 83.5 | 2-M6 | / | 8 | 33.5 | 13 | 4-M5 | 35 |
| 6A | MAP04006 | 60 | 4-G1/8" | 127 | 60 | 98 | 2-M6 | / | 12 | 45 | 18 | 4-M5 | 45 | |
| 8A | MAP04008 | 68 | 4-G1/4" | 153 | 68 | 125 | 2-M8 | / | 15 | 54 | 22 | 4-M6 | 50 | |
| 10A | MAP04010 | 75 | 4-G3/8" | 174 | 75 | 145 | 2-M8 | / | 19 | 65 | 24 | 4-M6 | 60 | |
| 15A | MAP04015 | 85 | 4-G1/2" | 211 | 85 | 180 | 2-M10 | / | 25 | 78 | 30 | 4-M8 | 65 | |
| MPA06 | 5A | MAP06005 | 45 | 6-M5 | 121.5 | 45 | 110 | 2-M6 | / | 8 | 33.5 | 13 | 6-M5 | 35 |
| 6A | MAP06006 | 75 | 6-G1/8" | 172 | 75 | 140 | 2-M8 | / | 12 | 51 | 18 | 6-M6 | 60 | |
| 8A | MAP06008 | 75 | 6-G1/4" | 201 | 75 | 160 | 2-M8 | / | 15 | 58 | 22 | 6-M6 | 60 | |
| MPA08 | 5A | MAP08005 | 55 | 8-M5 | 156.5 | 55 | 70 | 4-M6 | 40 | 10 | 37.5 | 13 | 8-M5 | 40 |
| 6A | MAP08006 | 85 | 8-G1/8" | 208 | 85 | 120 | 4-M8 | 40 | 12 | 50 | 18 | 8-M6 | 70 | |
| 8A | MAP08008 | 85 | 8-G1/4" | 248 | 85 | 160 | 4-M8 | 40 | 15 | 58 | 18 | 8-M6 | 70 | |
| MPA12 | 5A | MAP12005 | 75 | 12-M5 | 215 | 75 | 120 | 4-M8 | 50 | 10 | 41 | 13 | 12-M5 | 60 |
| 6A | MAP12006 | 105 | 12-G1/8" | 285 | 105 | 195 | 4-M8 | 40 | 12 | 52 | 18 | 12-M6 | 90 | |
| 8A | MAP12008 | 105 | 12-G1/4" | 290 | 105 | 200 | 4-M8 | 40 | 15 | 57 | 18 | 12-M6 | 90 | |
| MAP16 | 5A | MAP16005 | 95 | 16-M5 | 270 | 95 | 180 | 4-M8 | 50 | 10 | 44 | 13 | 8-M6 | 80 |
| 6A | MAP16006 | 115 | 16-G1/8" | 403 | 115 | 150 | 4-M12 | 200 | 14 | 59 | 18 | 16-M6 | 100 | |
| 8A | MAP16008 | 115 | 16-G1/4" | 423 | 115 | 170 | 4-M12 | 200 | 15 | 79 | 18 | 8-M8 | 100 | |
| MAP24 | 5A | MAP24005 | 85 | 24-M5 | 294.4 | 85 | 130 | 4-M8 | 130 | 10/22 | 52/176.2 | 8.2 | 6-M6 | 70 |
